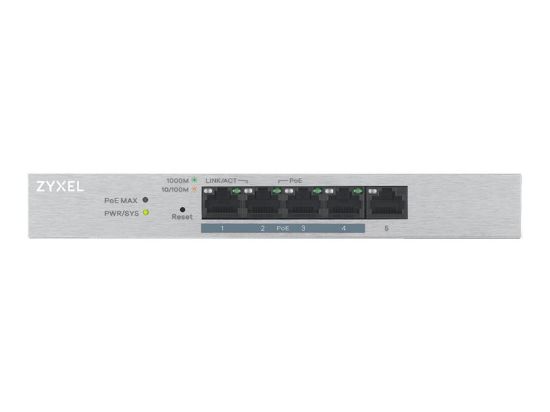

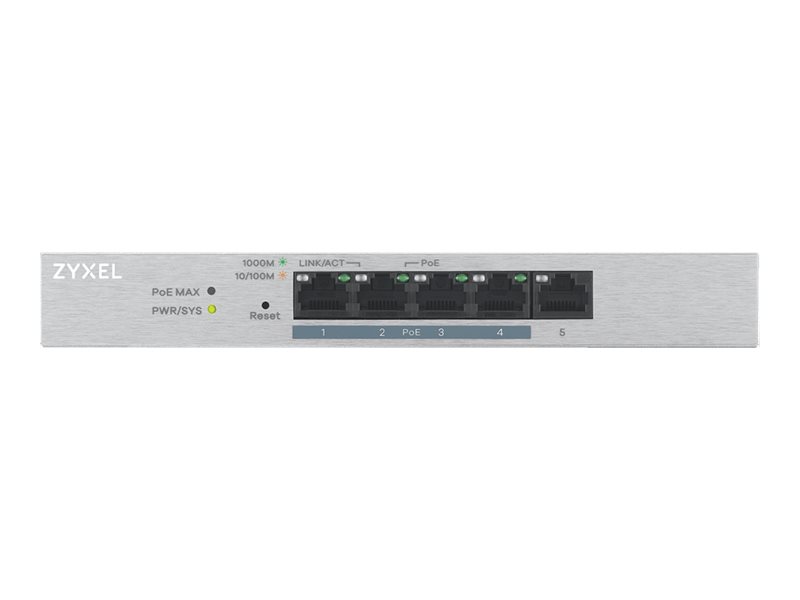

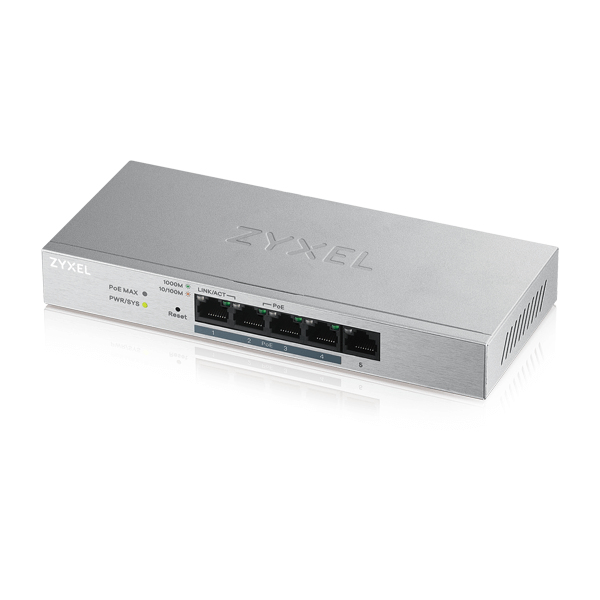

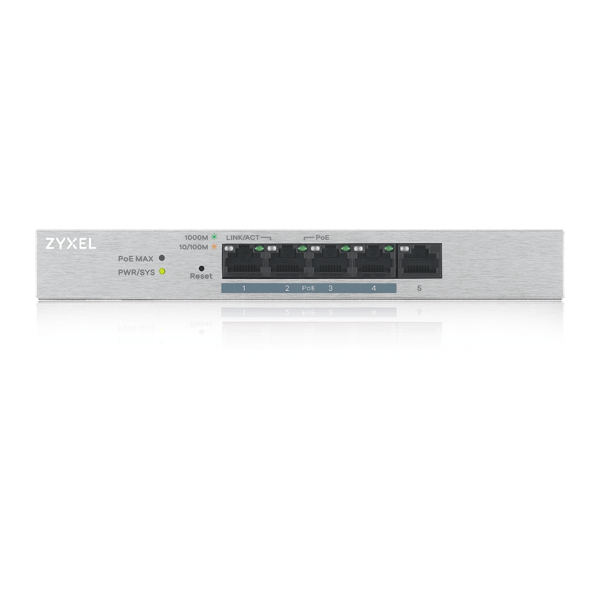

Zyxel GS1200-5HP v2 - switch - 5 porter - styrt
Tilgjengelighet: 20+ på lager
Sku: GS1200-5HPV2-EU0101F
GTIN: 4718937598717
Beskrivelse
The ZyXEL GS1200 series Web Managed PoE Gigabit Switch is more than just a typical PoE switch. It comes with an easy-to-use Web configuration to prioritize, limit and/or protect network traffics. It has been designed specifically for customers who require simple control functions for office network management.
The simple control functions include dividing a network into one or more smaller groups for security and resource planning. The ZyXEL GS1200 series' configurable QoS feature also enables better traffic management.
The ZyXEL GS1200 series optimizes media traffic delivery by supporting IGMP Snooping v1/v2 and v3 which is compatible with configurable IGMP router port selection.
The ZyXEL GS1200 series is firmware-upgradable for better support, and configuration can be backed up and restored to the system as well.
Smart features
The ZyXEL GS1200 series Web Managed PoE Gigabit Switch provides simple control for better manageability. Unlike other advanced but complex managed switches, the ZyXEL GS1200 series is suitable for most users and provides an affordable solution with fundamental features.
Easy configuration
The ZyXEL GS1200 series does not require any additional software. It is more visualized with an easy, friendly and intuitive Web GUI that helps configuration tasks to be completed in just simple clicks. It is much easier for small office users.
PoE support
The ZyXEL GS1200-5HP delivers PoE capabilities of IEEE 802.3at (30 watts/per port with total PoE power budget 60 watts) to supply power to PoE-capable network devices such as wireless and Bluetooth APs, IP cameras and IP phones. Web GUI management enables you to monitor power status of each port and/or to reboot the network devices.
Energy saving for IEEE 802.3az
The ZyXEL GS1200 series built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffics and adjusts power consumptions dynamically to reduce power consumption during the low link utilization periods.
Generelt
| Enhetstype | Switch - 5 porter - Styrt |
| Utførelse | Stasjonær |
| Undertype | Gigabit Ethernet |
| Porter | 1 x 10/100/1000 + 4 x 10/100/1000 (PoE+) |
| Strøm via Ethernet (PoE) | PoE+ |
| PoE-budsjett | 60 W |
| Ytelse | Koblingskapasitet: 10 Gbps |
| Kapasitet | Multicast-grupper: 128 |
| Mac Adress Tabellstørrelse | 2000 oppføringer |
| Jumborammestøtte | 9KB |
| Rutingprotokoll | IGMPv2, IGMP, IGMPv3 |
| Protokoll for fjernstyrt administrasjon | HTTP |
| Egenskaper | Flytkontroll, VLAN støttet, auto-uplink (auto MDI/MDI-X), IGMP-snusing, portspeiling, lagring og fremsending, Broadcast Storm Control, oppgraderbar fastvare, kan monteres på vegg, QoS, uten vifte, 128 kB-pakkebuffer, Energy Efficient Ethernet, CoS, merket VLAN, metallhus, Link Aggregation, WRR, støtte for LDF |
| Tilpassede standarder | IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
| Innebygde enheter | Strøm på/av-bryter |
| Statusindikatorer | Port status, strøm, PoE |
Ekspansjon / Tilkoplinger
| Grensesnitt | 4 x 1000Base-TX RJ-45 PoE+ - 30 W 1 x 1000Base-TX RJ-45 |
Strømforsyning
| Strømenhet | Ekstern strømadapter |
| Strømforbruk ved drift | 72 watt |
Diverse
| Tilpassede standarder | BSMI, FCC, LVD, EMC Class B |
| Lokalisering | Europa |
Mål og vekt
| Bredde | 19.3 cm |
| Dybde | 8.4 cm |
| Høyde | 2.6 cm |
| Vekt | 392 g |
Størrelser og vekt (forsendelse)
| Fraktbredde | 21 cm |
| Fraktdybde | 13.2 cm |
| Frakthøyde | 7.8 cm |
| Fraktvekt | 950 g |
Miljøparametere
| Min. driftstemperatur | 0 °C |
| Maks. Driftstemperatur | 40 °C |
| Driftsfuktighet | 10 - 90% (ikke-kondenserende) |
| Min. oppbevaringstemperatur | -40 °C |
| Maks. oppbevaringstemperatur | 70 °C |
| Fuktighetsområde under oppbevaring | 10 - 90% (ikke-kondenserende) |
