Along with the complete commercial product portfolio that offers customers with total network solutions, Zyxel introduces the ultimate RGS100-5P PoE switch with ruggedized design concepts to meet stringent outdoor or harsh network deployment scenarios. The wide operating temperature range ensures reliable performance in adverse environments and expands RGS100-5P's network availability in a wide variety of field applications.
Rugged and reliable design for harsh environments

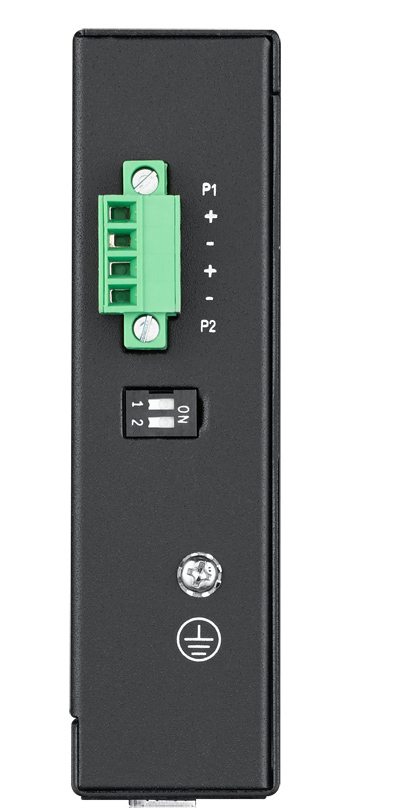

Designed with fanless and IP30 standard metal mechanism, the Zyxel RGS100-5P is able to to deliver excellent thermal controls and withstand dusty environments and can be installed on either a DIN rail or wall mount for efficient use of cabinet space. In addition, wide-ranging operating temperature tolerance allows RGS100-5P to be deployed across a spectrum of harsh environments. Equipped with dual DC power inputs, the RGS100-5P is capable of highavailability operation and resilience under the most demanding conditions. When switching is applied normally in outdoor settings, ESD (electrostatic discharge) and DC surge protection prevent the loss of business revenue and productivity due to damage or fatigue caused by power disturbances.
Trouble-free installation and easy extendibility

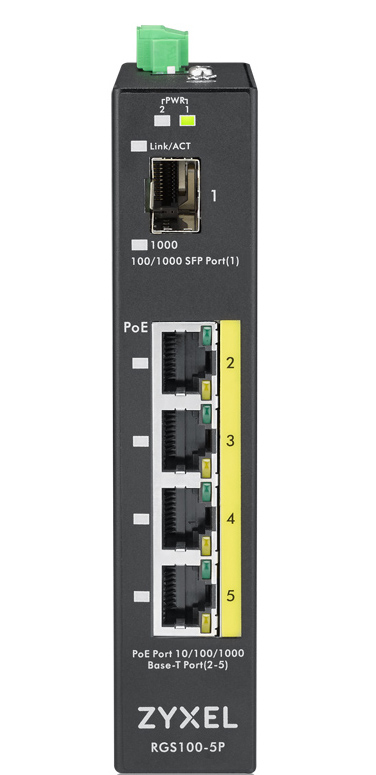

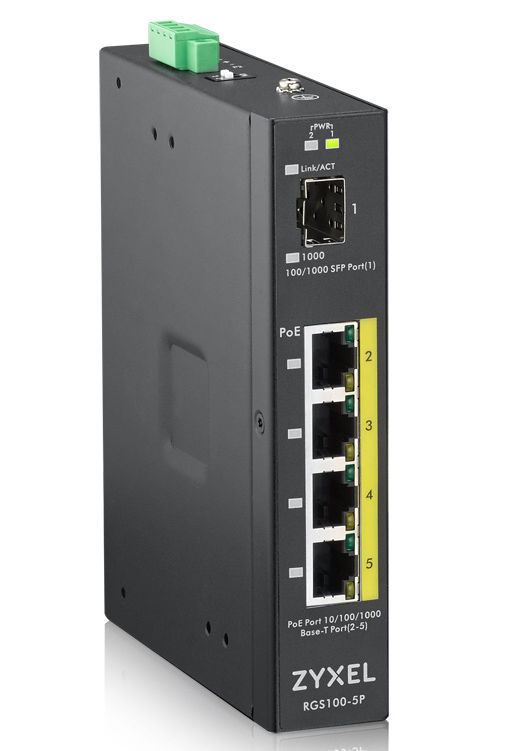

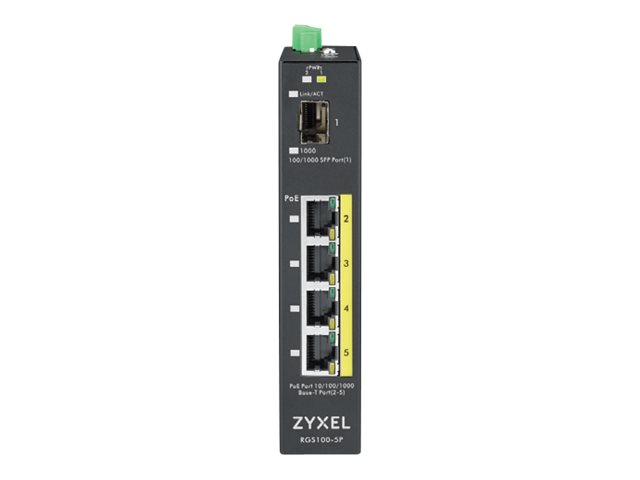

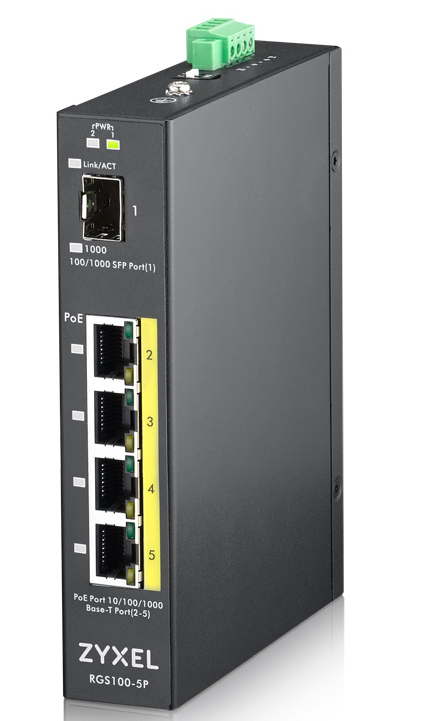

This rugged unmanaged PoE switch comes with four (4) 10/100/1000 Base-T copper PoE ports and one (1) 100/1000-Base-X SFP fiber interface. The switch also supports the 802.3at PoE plus standard, with each PoE port providing up to 30W of power to efficiently accommodate the most power-hungry devices. The fiber uplink can extend the network to long-distance nodes up to 40 km (43,744 yards) away for added flexibility.
Plug-and-Play deployments
The Zyxel RGS100-5P is able to negotiate the optimal data speed and activate duplex mode automatically with N-Way feature. It can also detect the type of connection to any Ethernet device with support for auto-MDI/MDI-X. Broadcast storm protection can easily be activated via DIP switch. Plug-and-play makes deploying the RGS100-5P hassle-free for any application or scenario.
