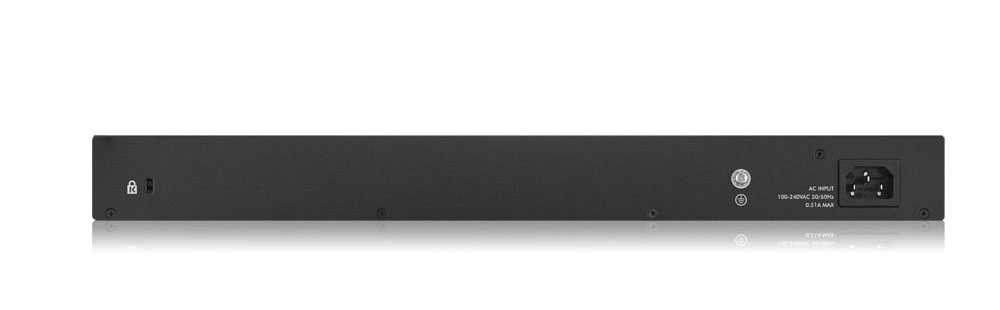

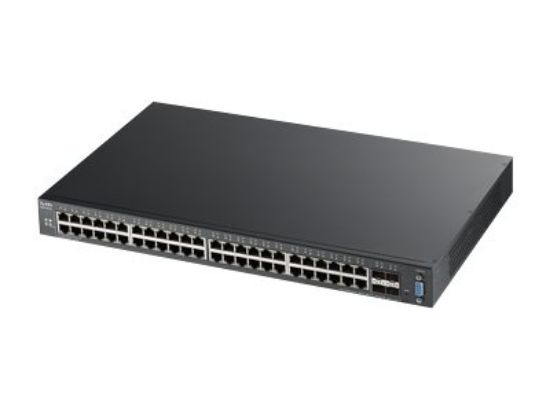

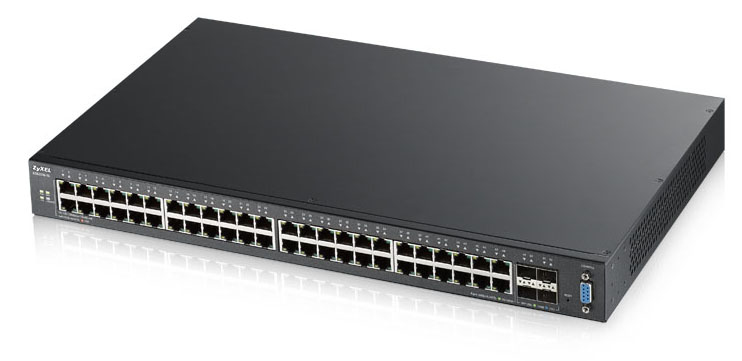

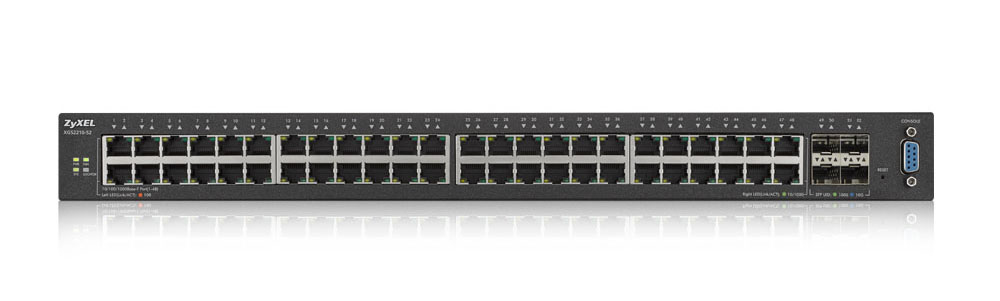

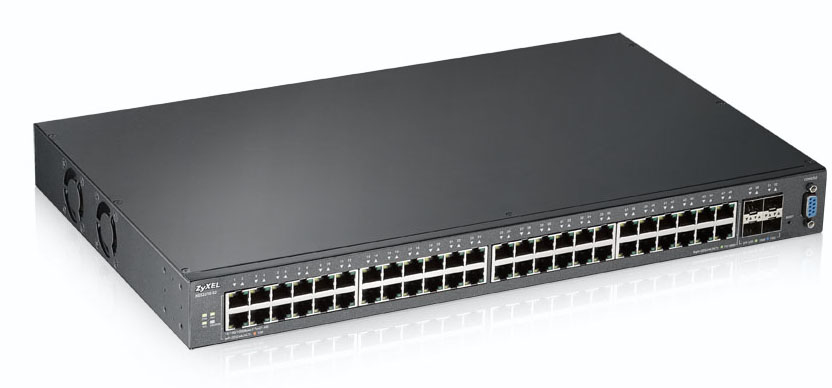

Zyxel | XGS2210-52 | Layer 3 Access Switch with 10GbE Uplink | 48x Port | 1Gbit/s

Tilgjengelighet: Ikke på lager
Sku: XGS2210-52-EU0101F
11 320,00 kr inkl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

ZyXEL XGS2210 series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference, IPTV and IP surveillance deployments and provide hotels, businesses and educational institutions greater agility and more effective traffic management for the converged applications of today.

The ZyXEL XGS2210 PoE switches support the IEEE 802.3af PoE and 802.3at PoE Plus standards, which provide up to 30 watts of power per port for advanced Powered Devices (PD) like 802.11ac wireless APs and video IP phones. The high power budget enables the XGS2210 PoE switches to comfortably accommodate the PDs required in a modern network edge.

ZyXEL XGS2210 series offers enhanced control and isolation for improved convergence of video, voice and data. Such advanced defense mechanisms as IP source guard, DHCP snooping, and ARP inspection can detect and block intentional network attacks. Combining multiple L2, L3 and L4 filtering mechanisms with such education - and hospitality friendly features as MAC freeze, port isolation and guest VLAN, the ZyXEL XGS2210 series offers a high level of security, flexibility and control for diverse access layer deployments.

Agile traffic control for converged networking applications

ZyXEL XGS2210 series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference, IPTV and IP surveillance deployments and provide hotels, businesses and educational institutions greater agility and more effective traffic management for the converged applications of today.

High-powered Power over Ethernet (PoE)

The ZyXEL XGS2210 PoE switches support the IEEE 802.3af PoE and 802.3at PoE Plus standards, which provide up to 30 watts of power per port for advanced Powered Devices (PD) like 802.11ac wireless APs and video IP phones. The high power budget enables the XGS2210 PoE switches to comfortably accommodate the PDs required in a modern network edge.

High level network and access security

ZyXEL XGS2210 series offers enhanced control and isolation for improved convergence of video, voice and data. Such advanced defense mechanisms as IP source guard, DHCP snooping, and ARP inspection can detect and block intentional network attacks. Combining multiple L2, L3 and L4 filtering mechanisms with such education - and hospitality friendly features as MAC freeze, port isolation and guest VLAN, the ZyXEL XGS2210 series offers a high level of security, flexibility and control for diverse access layer deployments.



Generelt
EnhetstypeSwitch - 52 porter - Styrt
UtførelseRackmonterbar 1U
UndertypeGigabit Ethernet
Porter48 x 10/100/1000 + 4 x 10 Gigabit SFP+
YtelseKoblingskapasitet: 176 Gbps
Videresendingsytelse: 130.9 Mpps
KapasitetQoS-maskinvarekøer per port: 8
Mac Adress Tabellstørrelse16K-oppføringer
Jumborammestøtte9KB
RutingprotokollIGMPv2, IGMP, statisk IP-ruting, IGMPv3, MLD
Protokoll for fjernstyrt administrasjonSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
KrypteringsalgoritmeSSL
Autentifikasjons MetodeSecure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
EgenskaperFlytkontroll, VLAN støttet, IGMP-snusing, Syslog-støtte, portspeiling, WRR-kø, MAC-adressefiltrering, Broadcast Storm Control, IPv6-støtte, URL-filtrering, IP-adressefiltrering, Multicast Storm Control, oppgraderbar fastvare, WFQ, ZyXEL iStacking Technology, sFlow, STP-støtte, støtte for RSTP, MSTP-støtte, DHCP-snusing, ACL-støtte, QoS, MLD-snusing, STP Root Guard, IPv4-støtte, uten vifte, DHCP-overføring, Port Security, IP-MAC-binding, SNMP-felle, DHCP-klient, Energy Efficient Ethernet, MIB, MVR, fastvare dobbeltbilder, SPQ, NDP, sløyfeprevensjon, NTP-tidssynkronisering, portisolering, CoS, merket VLAN, GVRP, IGMP-proksy, støtte for DSCP, 1,5 MB-pakkebuffer, ErrDisable Recovery, ZON, IGMP-filtrering, IGMP-struping, Protokollbasert VLAN-støtte, CPU-beskyttelse, IP-kildebeskytter, ARP-kontroll, ICMP, VLAN-filtrering
Tilpassede standarderIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
StatusindikatorerStrøm, system, vifte
Ekspansjon / Tilkoplinger
Grensesnitt48 x 1000Base-T RJ-45
4 x 10 Gbit-LAN SFP+
1 x seriell (RS-232) styring
Strømforsyning
StrømenhetIntern strømforsyning
Påkrevd nettspenningAC 120/230 V (50/60 Hz)
Strømforbruk ved drift45 watt
Diverse
MTBF970,594 timer
Tilpassede standarderBSMI, RoHS, FCC Part 15 A, LVD, EMC Class A, BSMI ENC
LokaliseringEuropa
Mål og vekt
Bredde44.1 cm
Dybde27 cm
Høyde4.5 cm
Vekt3.86 kg
Fabrikantgaranti
Service og støtteBegrenset garanti - levetid
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur50 °C
Driftsfuktighet10 - 95% (ikke-kondenserende)
Min. oppbevaringstemperatur-40 °C
Maks. oppbevaringstemperatur70 °C
Fuktighetsområde under oppbevaring10 - 90% (ikke-kondenserende)
