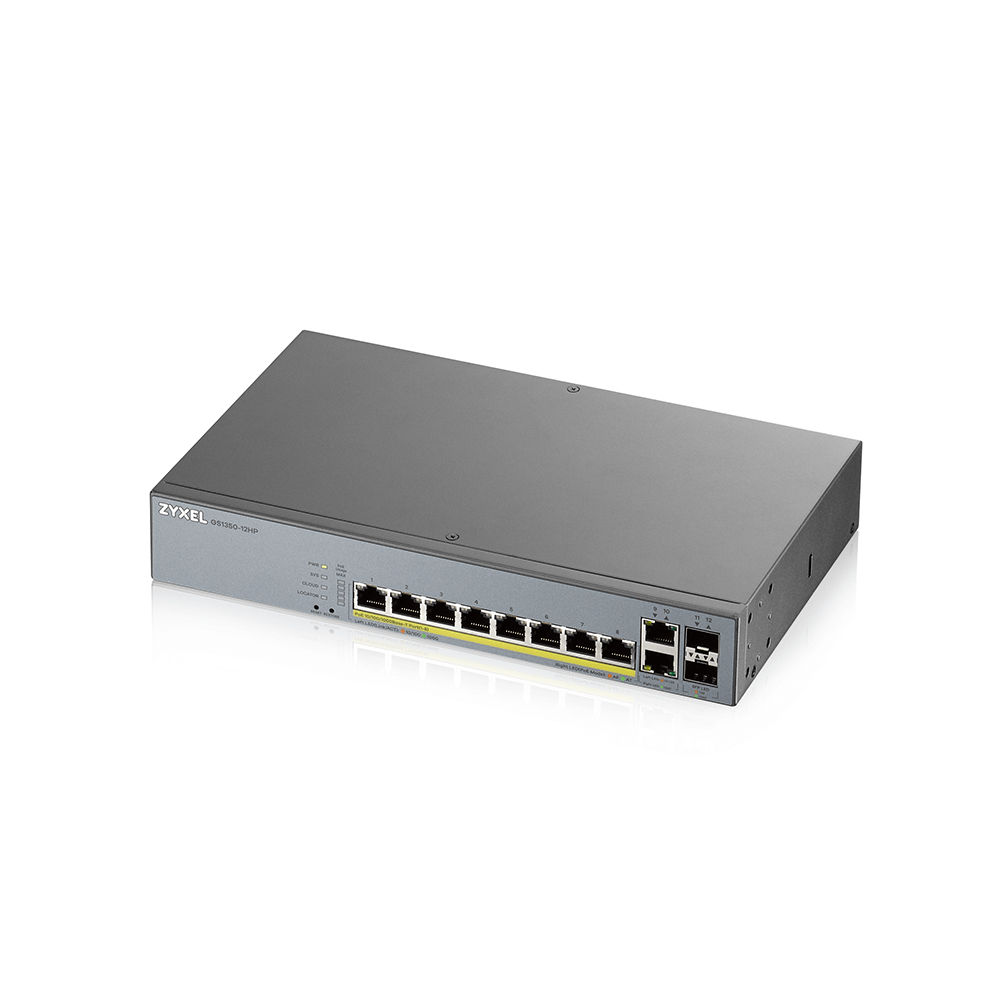

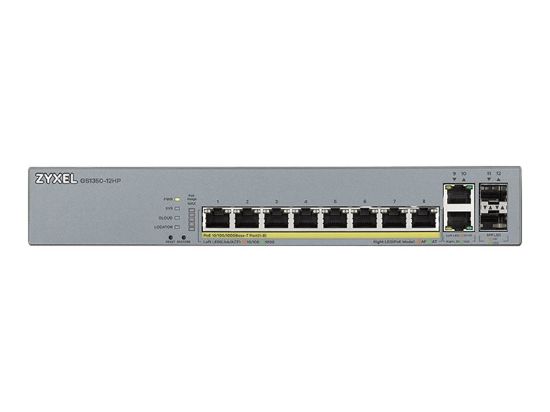

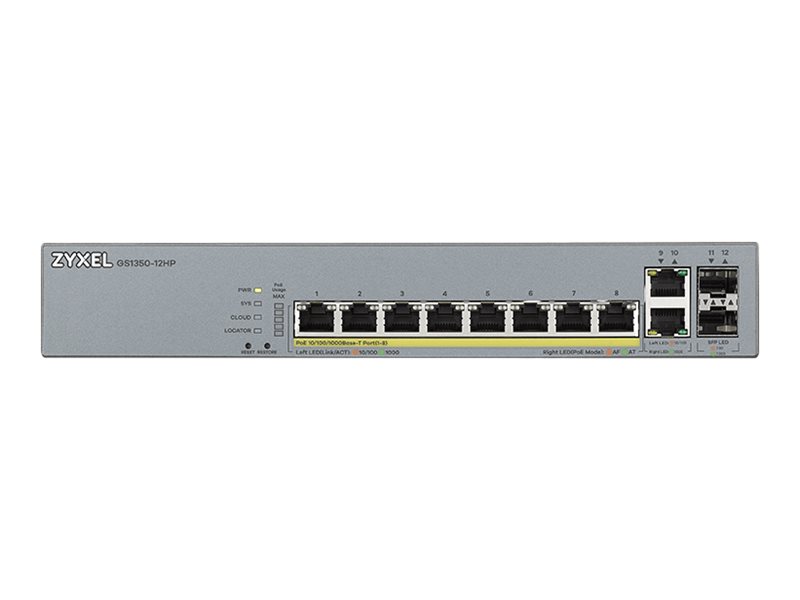

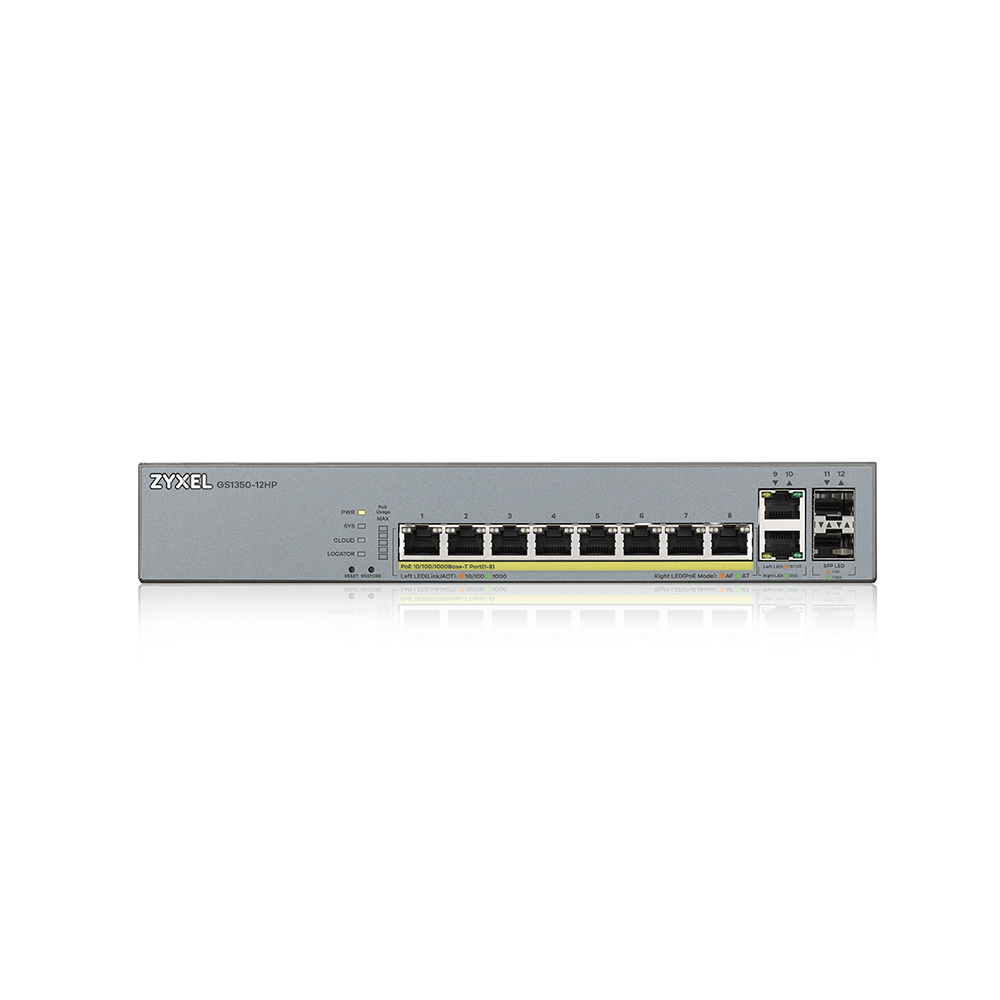

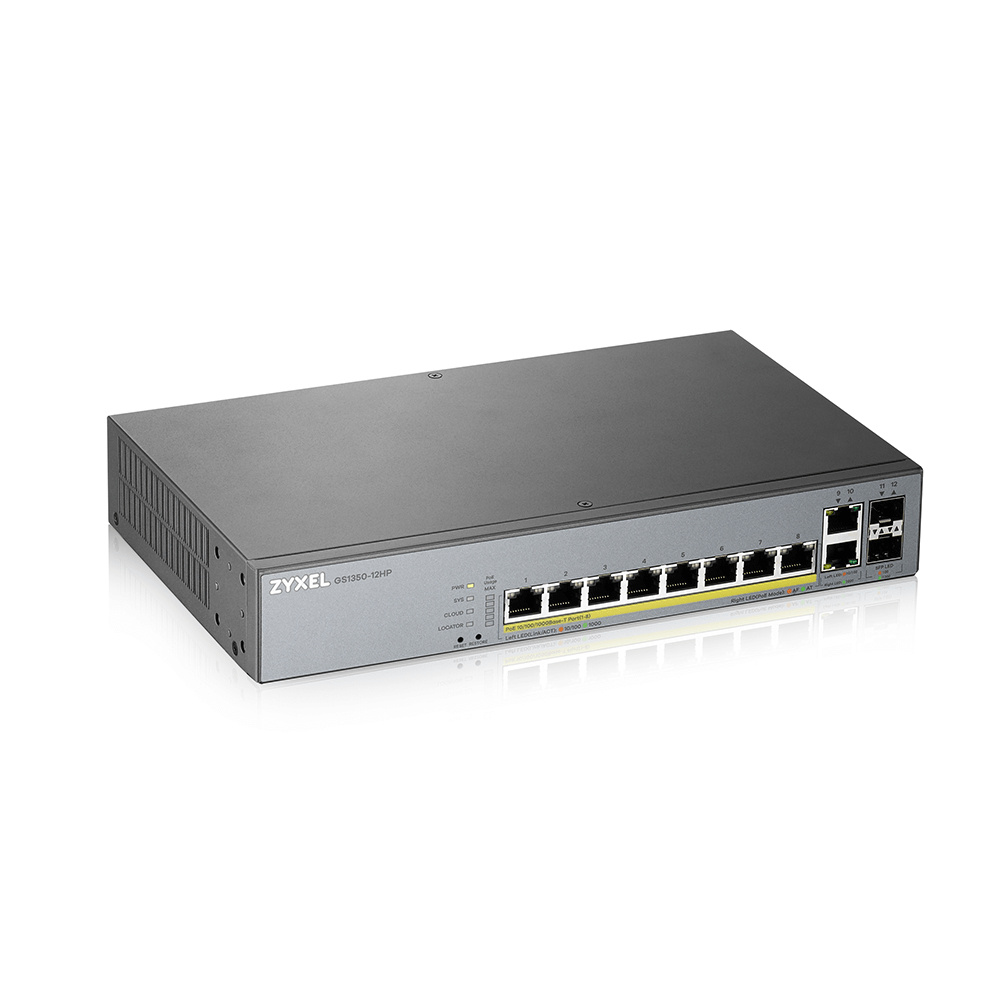

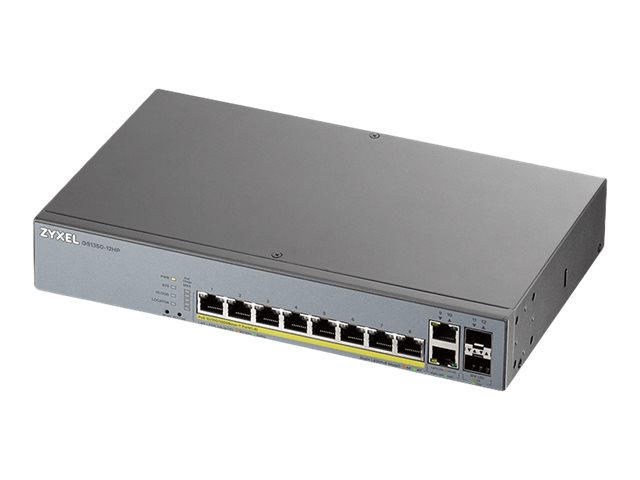

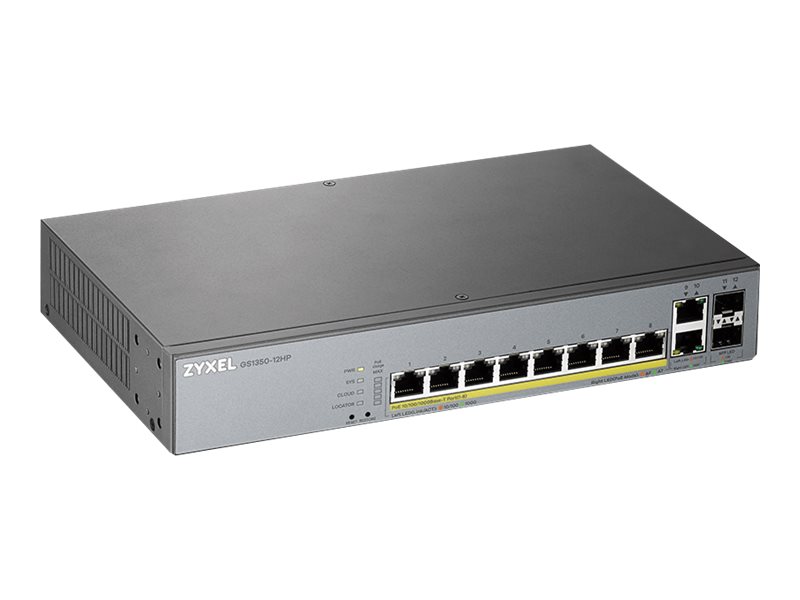

Bilde av ZYXEL GS1350-12HP 12 Port managed CCTV PoE Switch long range 130W

ZYXEL GS1350-12HP 12 Port managed CCTV PoE Switch long range 130W

Tilgjengelighet: 2 på lager
Sku: GS1350-12HP-EU0101F
3 180,00 kr inkl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

Traditionally, PoE switch delivers power and data within the distance of the 100 meter limitation. The GS1350 series fulfills the need to deploy IP camera or power devices using existing Cat 5e cable to distant locations. By enabling extended-range mode, instantly achieve distant deployments up to 250m. Save your money and effort with simply one PoE.

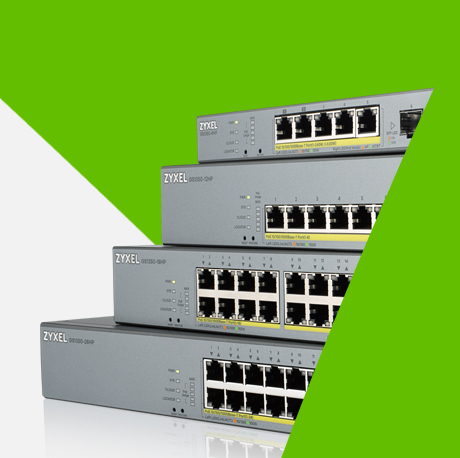

The GS1350 series includes four models with large power budgets of up to 375 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status. In addition, the one-touch "Restore" button on GS1350 Series helps effortless recovery from misconfigurations.

New outlook

Coated in titanium gray, the GS1350 excels with an eye-catching identity dedicated for surveillance Switch.

Easy for long-distance deployment

Traditionally, PoE switch delivers power and data within the distance of the 100 meter limitation. The GS1350 series fulfills the need to deploy IP camera or power devices using existing Cat 5e cable to distant locations. By enabling extended-range mode, instantly achieve distant deployments up to 250m. Save your money and effort with simply one PoE.

High power budget, intuitive front panel design

The GS1350 series includes four models with large power budgets of up to 375 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status. In addition, the one-touch "Restore" button on GS1350 Series helps effortless recovery from misconfigurations.



Generelt
EnhetstypeSwitch - 8 porter - smart
UtførelseStasjonær, rackmonterbar
UndertypeGigabit Ethernet

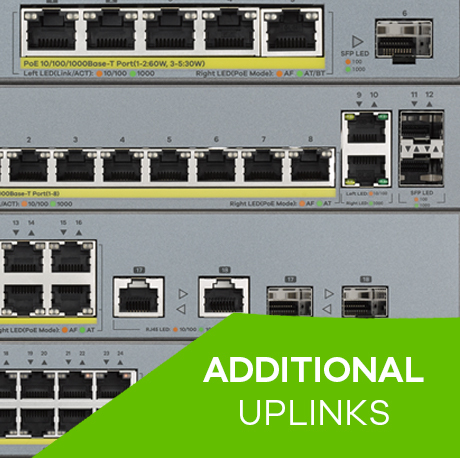

Porter8 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (opplink) + 2 x Gigabit SFP (opplink)
Strøm via Ethernet (PoE)PoE+
PoE-budsjett130 W
YtelseKoblingskapasitet: 24 Gbps
Fremsendingsrate: 17.8 Mpps
Pakkebufferstørrelse: 525 KB
Mac Adress Tabellstørrelse8K adresser
RutingprotokollIGMPv2, IGMP, IGMPv3, RSTP, STP
Protokoll for fjernstyrt administrasjonSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, CLI, NTP, ICMP, DHCP, RSTP, RADIUS
KrypteringsalgoritmeSSL, SHA-2
Autentifikasjons MetodeSecure Shell (SSH), RADIUS
EgenskaperFlytkontroll, IGMP-snusing, Syslog-støtte, MAC-adressefiltrering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, WFQ, DHCP-snusing, LLDP-støtte, DHCP-overføring, LACP, DHCP-klient, MIB, fastvare dobbeltbilder, SPQ, NDP, portisolering, CoS, 8KV/15KV ESD Protector, støtte for DSCP, IGMP-filtrering, CPU-beskyttelse, 4 kV-overspenningsvern, Loop Guard, LLDP-MED, EEE, WRR, VLAN-hovedlinjegruppering
Tilpassede standarderIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Ekspansjon / Tilkoplinger
Grensesnitt8 x 1000Base-T RJ-45 PoE+
2 x 1000Base-T RJ-45 opplink
2 x 1000Base-X SFP opplink
Strømforsyning
StrømenhetIntern strømforsyning
Påkrevd nettspenningAC 120/230 V (50/60 Hz)
Strømforbruk ved drift160.3 watt
Diverse
Rack-monteringssettInkludert
MTBF1,065,025.45 timer
Tilpassede standarderFCC, RoHS, BSMI CNS 13438, C-Tick Class A, LVD, BSMI CNS 14336-1, EN 62368-1
LokaliseringEuropa
Mål og vekt
Bredde26.7 cm
Dybde16.2 cm
Høyde4.4 cm
Vekt1.63 kg
Miljøparametere
Min. driftstemperatur-20 °C
Maks. Driftstemperatur50 °C
Driftsfuktighet5 - 95 % (ikke-kondenserende)
Min. oppbevaringstemperatur-40 °C
Maks. oppbevaringstemperatur70 °C
Fuktighetsområde under oppbevaring5 - 95 % (ikke-kondenserende)
