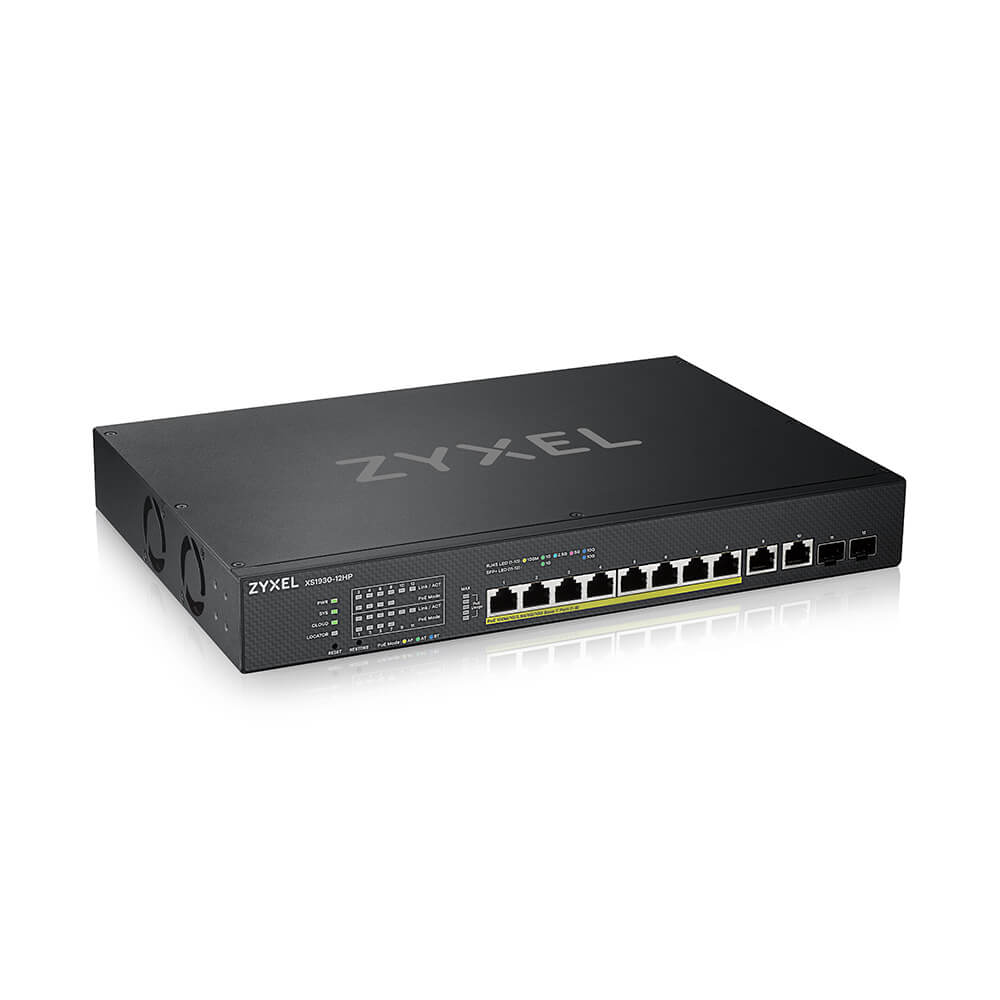

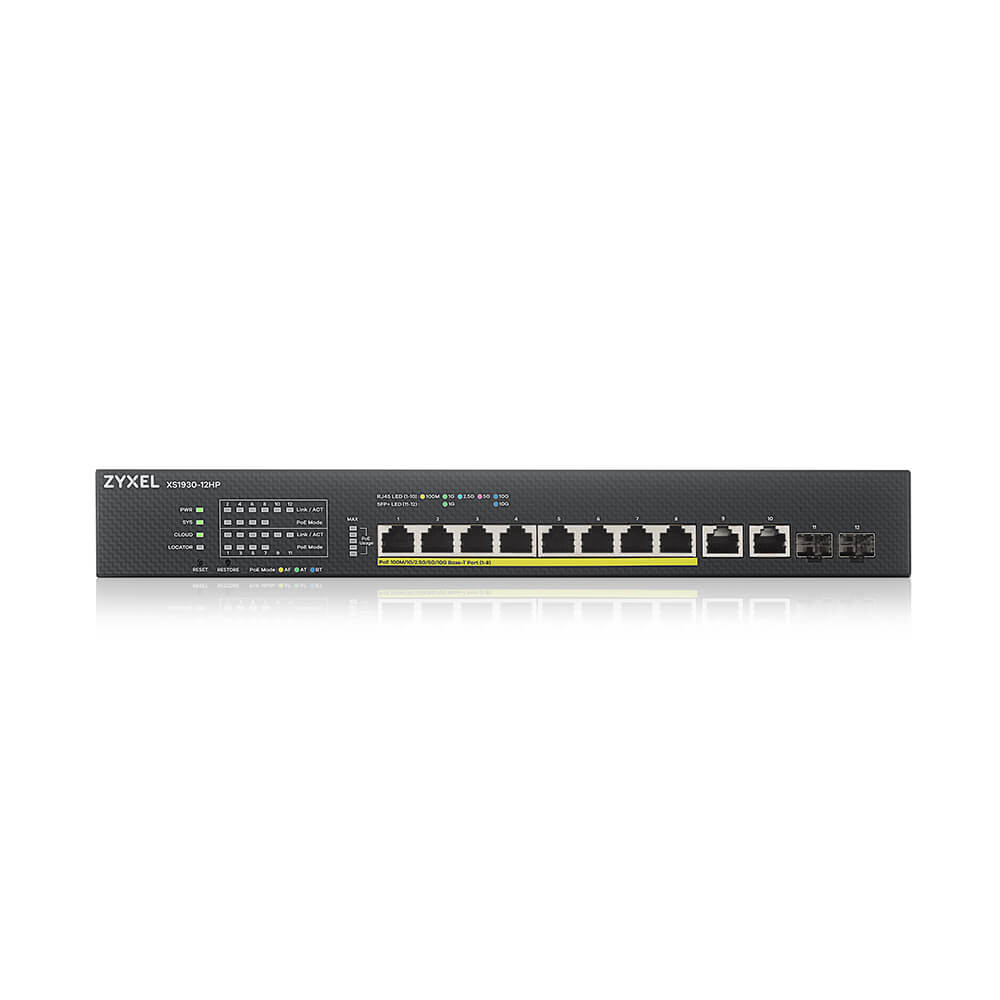

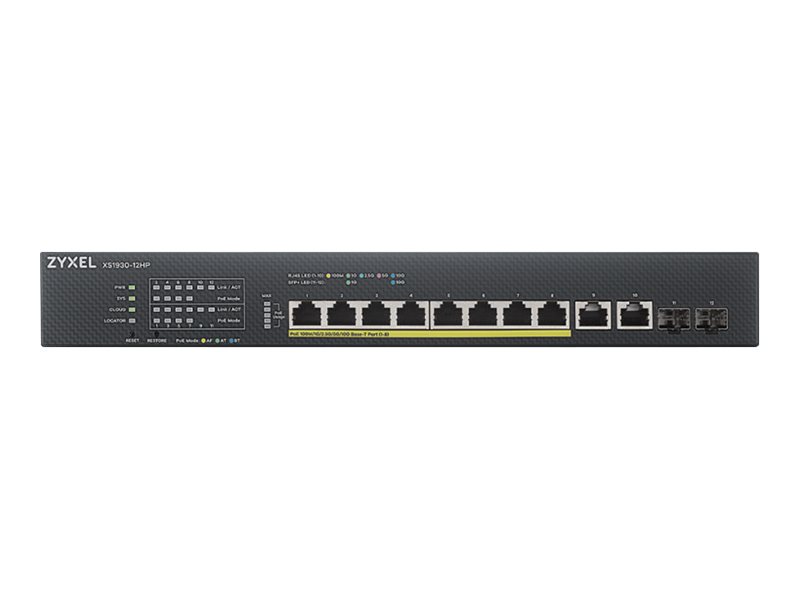

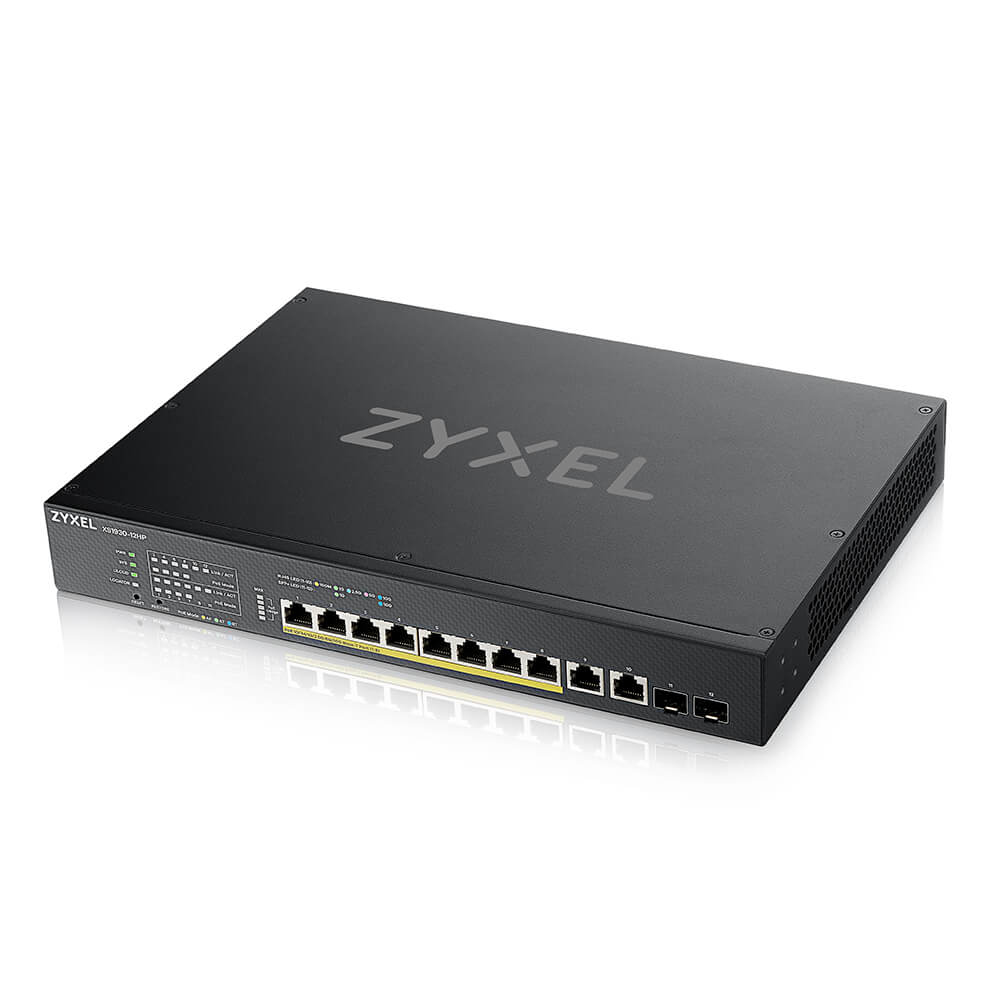

Zyxel | XS1930-12HP | Multi-Gig PoE Lite-L3 Smart Managed Switch | 10x Port | 10Gbit/s | 375W PoE

Tilgjengelighet: 2 på lager

Sku: XS1930-12HP-ZZ0101F

9 205,00 kr inkl mva

Antall:

Beskrivelse

The XS1930 series switch supports IEEE 802.3bz standard for delivering multi-Gigabit technology on existing wiring infrastructure which offering more bandwidth capacity without expensive and disruptive cable upgrades.

True backbone of Wi-Fi 6

Wi-Fi 6 needs higher speed LAN. The PoE model XS1930-12HP supports the PoE standard IEEE 802.3bt (PoE++), giving enough headroom for connections up to 8 Wi-Fi 6 (11ax) APs.

Experience the near silent operation

The built-in smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the XS1930 series is operating. It is ideal for your office environment.

Smart managed switch inside and out

The XS1930 series aims to widen user experience with its unique "restore" button as well as fully loaded SMB features such as VLAN, enhanced QoS, and LAG along with IPv4/IPv6 layer 3 static route, can all be configured via its local user-friendly web interface efficiently.

Generelt

Enhetstype	Switch - 12 porter - smart - kan stables
Utførelse	Rackmonterbar
Undertype	10 Gigabit Ethernet
Porter	8 x 100/1000/2.5G/5G/10GBase-T (PoE++) + 2 x 100/1000/2.5G/5G/10GBase-T + 2 x 10 Gigabit SFP+
Strøm via Ethernet (PoE)	PoE++
PoE-budsjett	375 W
Ytelse	Koblingskapasitet: 240 Gbps Videresendingsytelse: 178,5 Mpps
Mac Adress Tabellstørrelse	16K-oppføringer
Rutingprotokoll	IGMPv2, IGMP, IGMPv3, regelbasert ruting (PBR)
Protokoll for fjernstyrt administrasjon	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, CLI
Krypteringsalgoritme	SSL
Autentifikasjons Metode	RADIUS, TACACS+
Egenskaper	Flytkontroll, IGMP-snusing, Syslog-støtte, portspeiling, DiffServ-støtte, WRR-kø, MAC-adressefiltrering, Broadcast Storm Control, IPv6-støtte, IP-adressefiltrering, Multicast Storm Control, Unicast Storm Control, WFQ, ZyXEL iStacking Technology, STP-støtte, støtte for RSTP, MSTP-støtte, DHCP-snusing, ACL-støtte, QoS, MLD-snusing, LLDP-støtte, DHCP-overføring, LACP, Port Security, NTP-server, IP-MAC-binding, SNMP-felle, DHCP-klient, Energy Efficient Ethernet, MVR, GVRP, fastvare dobbeltbilder, SPQ, NDP, 2 MB-pakkebuffer, sløyfeprevensjon, portisolering, CoS, merket VLAN, IGMP-proksy, ErrDisable Recovery, ZON, IGMP-filtrering, IGMP-struping, CPU-beskyttelse, IP-kildebeskytter, ARP-kontroll, retningslinjebasert ratebegrensning
Tilpassede standarder	IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt
RAM	256 MB
Flash-minne	32 MB
Statusindikatorer	Strøm, system, lenke/aktivitet

Ekspansjon / Tilkoplinger

Grensesnitt

8 x 100/1000/2.5G/5G/10GBase-T (PoE++) RJ-45 60 W
2 x 100/1000/2.5G/5G/10GBase-T RJ-45
2 x 10GBase-X SFP+

Strømforsyning

Strømenhet	Intern strømforsyning
Påkrevd nettspenning	AC 120/230 V (50/60 Hz)
Strømforbruk ved drift	493 watt

Diverse

Rack-monteringssett	Inkludert
MTBF	582,873 timer
Tilpassede standarder	BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A, BSMI ENC

Mål og vekt

Bredde	33 cm
Dybde	23 cm
Høyde	4.4 cm
Vekt	2.8 kg

Størrelser og vekt (forsendelse)

Fraktbredde	48.4 cm
Fraktdybde	33.7 cm
Frakthøyde	7.9 cm
Fraktvekt	4 kg

Fabrikantgaranti

Service og støtte

Begrenset garanti - levetid

Miljøparametere

Min. driftstemperatur	-20 °C
Maks. Driftstemperatur	50 °C
Driftsfuktighet	5 - 95 % (ikke-kondenserende)
Min. oppbevaringstemperatur	-40 °C
Maks. oppbevaringstemperatur	70 °C
